Name: Multibeam Forward-Looking Imaging Sonar M750d (复制)
Brand: BluePrint
SKU: 4-6
Availability: InStock

Multibeam Forward-Looking Imaging Sonar M750d (复制)

$32 900.00

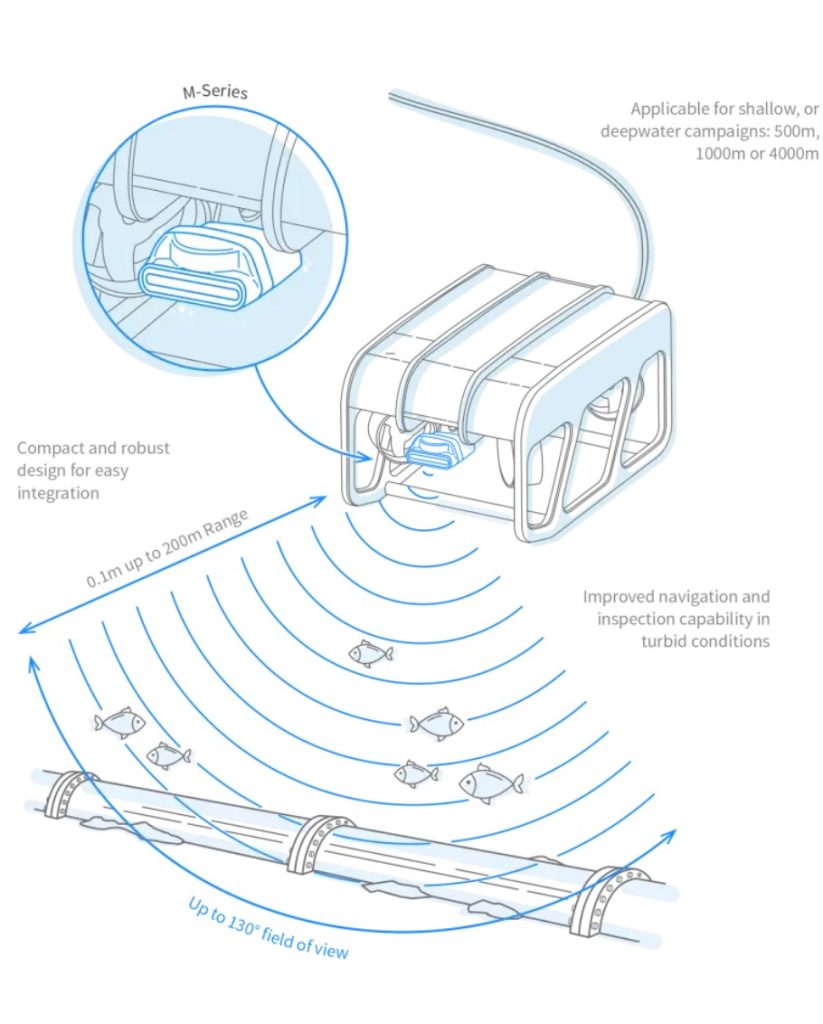

Oculus M750d high-precision dual-frequency multibeam forward-looking imaging sonar is mostly equipped with small and medium-sized underwater ROVs and AUVs, which are used for underwater detection and navigation, structural inspection, salvage and rescue, and security patrol.

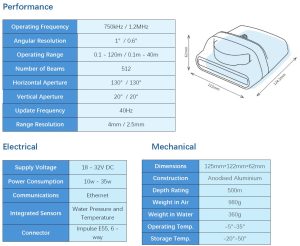

Dual-frequency imaging at 750kHz and 1.2MHz.
Detection range 0.1~120 meters, distance resolution 2.5mm
Horizontal aperture 130°, vertical aperture 20°
Depth rating 500m

Blueprint Oculus M750d, a dual-frequency multibeam forward-looking imaging sonar, with a 500m depth rating, is suitable to use on small inspection-class ROVs, as well as large, operational-class underwater unmanned platforms.
