An affordable multibeam echosounder!

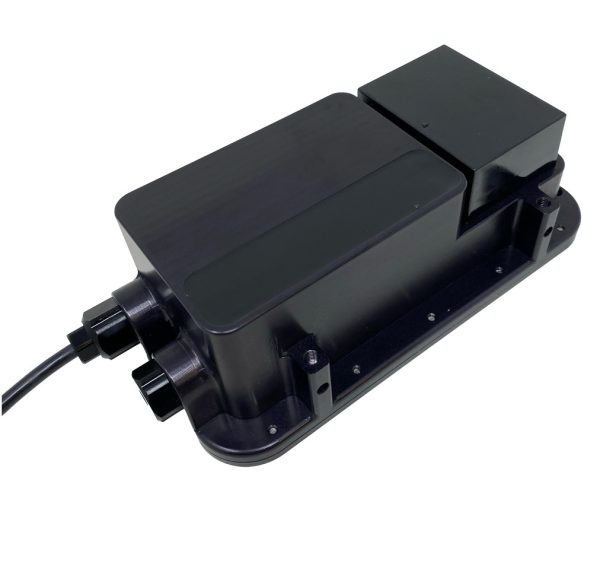

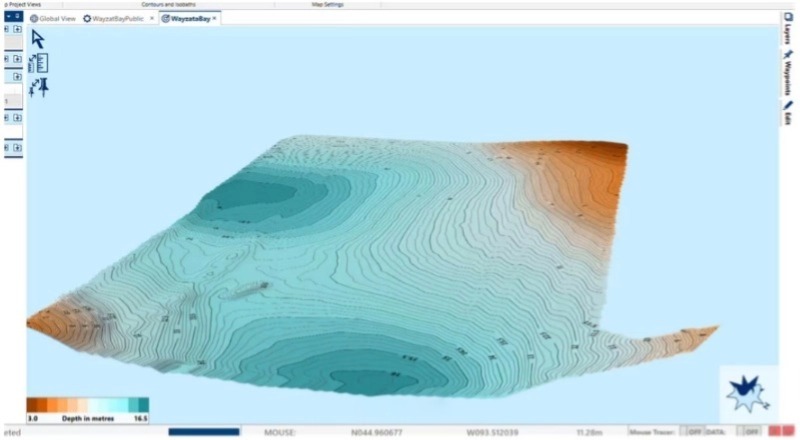

Bathymetric surveys with MBES technology can be more than ten times faster than surveys with single-beam echosounders. With its small size and low cost, the Surveyor 240-16 is a perfect fit for deployment on the new generation of small Uncrewed Surface Vessels (USVs).

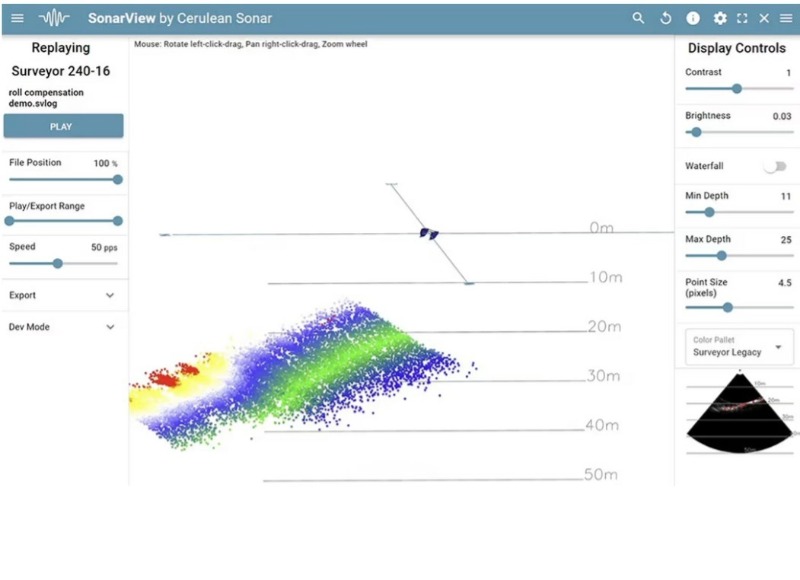

Depth range of 50m & a built-in IMU to provide accurate results in rough water.

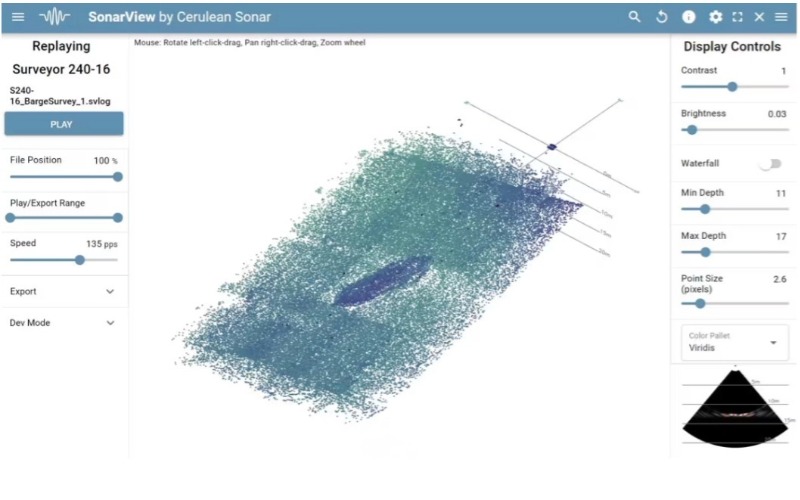

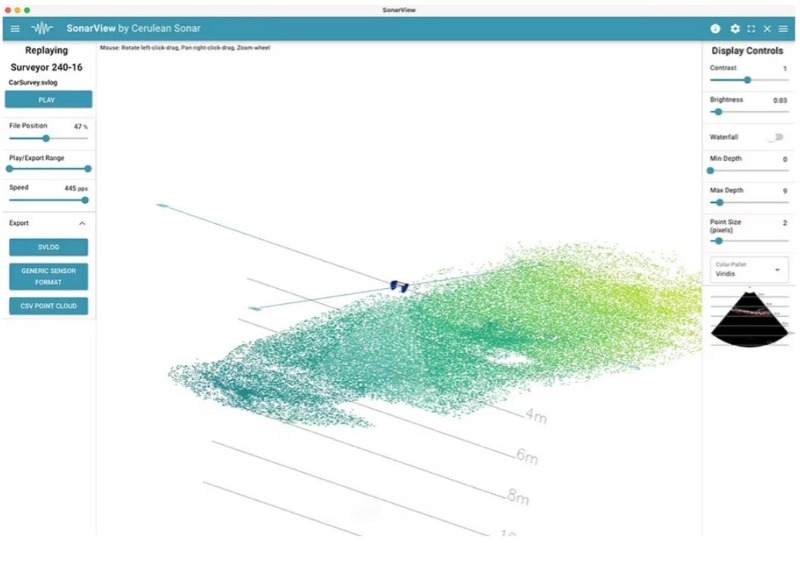

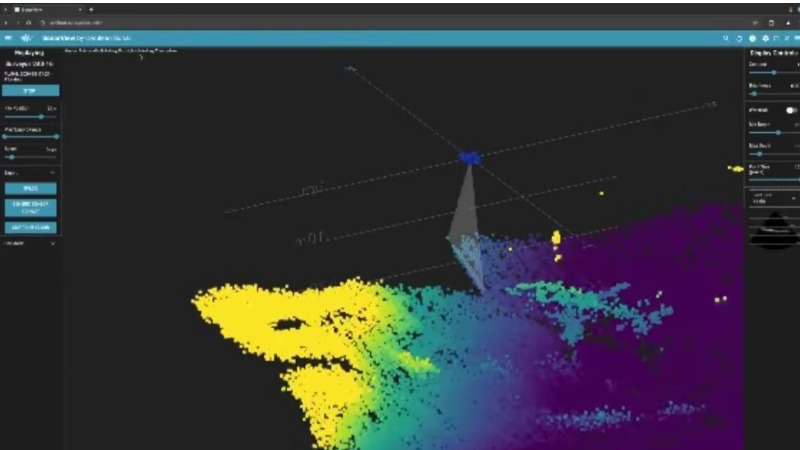

Real-time 3D point clouds of the seafloor for bathymetric surveys and mapping.
| Specifications | |
|---|---|
| Frequency | 240kHz |
| Along track TX beam width | 4° |
| Cross track TX beam width | 80° |
| RX array # elements | 16 |
| Cross track beam width | 7° (conventional beamforming) |
| Cross track angular resolution | 1° (angle of arrival) |
| Range resolution | 0.5% of range setting |
| Maximum depth rating | 300m |
| Maximum suggested range | 50m (> 100m with a hard bottom). |
| Power Supply | 10-30V, 5W typical at idle, 15W typical max while pinging |
| Data Interface | 100BaseT Ethernet. |
| Electrical Connection | JST GH (4 pos) for data.A JST GH to RJ45 adapter is included. |
| Weight in Air | 790g |
| Weight in Water | 145g |
