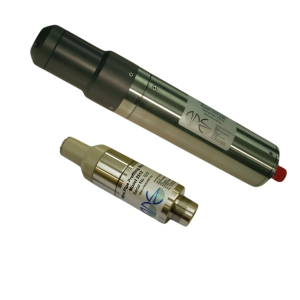

The Mini Pipe Profiling Sonar 2512E with 2MHz scanning frequency and 2m detection range is suitable for internal inspection of full water pipes or boreholes.
- no draining
- no end sealing
- no drilling
- No human entering — stay out of the hazardous long pipeline.
| Software Features | |
|---|---|
| Display Modes | Polar – full 360 degree coverage, Sector – 30° to 270° arc width at 30° to 330° centre angles in 30° |
| Range Settings (mm): | 125、187、250、375、500、750、1000、1500、2000 |
| Range Resolution: | 1/200 ，1/400，1/600 of full scale range |
| Angular Resolution: | 0.9° |
| Minimum Range: | 50mm |
| Tx Pulse Length: | Variable 4usec to 20usec |
| Display Resolution: | 400 sectors |
| Colour Control: | 8bit multiple palletes with min, max and step control to optimise dynamic range |
| ASCII Output: | NMEA style profiling string via RS232 |
| OS | Windows XP Upwards |
| Underwater Unit | |
|---|---|
| Acoustic Frequency: | 2MHz |
| Beam Width: | 1.8 degrees conical |
| Receiver: | Logarithmic |
| Bandwidth | 500kHz |
| Pitch/Roll Sensors: | 3 Axis accelerometers, resolution 0.1 degrees |
| Power Requirements: | +14VDC at 1A maximum |
| Overall Length: | 178mm |
| Diameter: | 50mm |
| Finish: | Stainless Steel 316 with Peek transducer housing |
| Operating Depth: | 100m |
| Operating Temp: | +5°C ~ +40°C |
| Storage Temp: | 0°C ~+70°C |
| Weight in Water: | 0.75 kg |
| Weight in Air: | 0.4 kg |
| Communication | 10/100 Base-T Ethernet |
For bigger pipes with inner diameter up to 6m, please refer to pipe profiling sonar 1512, which is twice as longer than 2512E.
